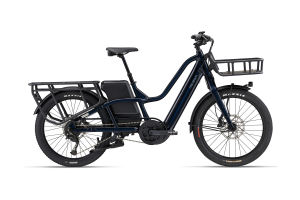

Pakyak E+

Original price: £3,999 £4,799

Skip to compare section

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      155 cm5’1” to 190 cm6’3”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  One Size
ASeat Tube Length (mm) (inch)42016.5
BSeat Tube Angle (degrees)70.0°
CTop Tube Length (mm) (inch)62024.4
DHead Tube Length (mm) (inch)2058.1
EHead Tube Angle (degrees)70.0°
FFork Rake (mm) (inch)351.4
HWheelbase (mm) (inch)128450.6
IChain Stay Length (mm) (inch)63825.1
JBottom Bracket Drop (mm) (inch)301.2
KStack (mm) (inch)63324.9
LReach (mm) (inch)39015.4
MStand Over Height (mm) (inch)57422.6
NHandlebar Width (mm) (inch)72028.3
OStem Length (mm) (inch)451.8
PCrank Length (mm) (inch)1706.7
QWheel Size 24”x2.6”
Specs
  • Motor
    SyncDrive Pro 80Nm, powered by Yamaha, PedalPlus 6-Sensor technology
  • Controller
    RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
  • Display
    RideControl Dash, high-angle visibility, full color LCD display
  • Battery
    EnergyPak 500Wh Campact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production. Optional EnergyPak Plus 500Wh range extender compatible.
  • Charger
    Giant EnergyPak 6A smart charger, 60% in 1:25h
  • Sizes
    1-size
  • Frame
    ALUXX Aluminium, Mid Step
  • Fork
    ALUXX Aluminium, Rigid Fork with Utility Feature
  • Shock
    -
  • Handlebar
    Aluminium 20D Sweep Back, Rise 50 mm, Width: 720mm, TR49A-00S1
  • Grips
    Momentum dual compound
  • Stem
    Giant Contact
  • Seatpost
    Suspension Dropper 30.9mm, Travel: 40mm, Height 70mm Adjustment
  • Saddle
    Momentum Saddle w/ Rear Handle
  • Pedals
    Anti-slip
  • Shifters
    Shimano Acera, 9-speed
  • Front Derailleur
    -
  • Rear Derailleur
    Shimano Alivio, 9-speed
  • Brakes
    Tektro HD-E737, 4-piston, hydraulic disc for Cargo, 203mm [F&R]
  • Brake Levers
    Tektro 2 Fingers
  • Cassette
    Shimano CS-HG200, 11-36T
  • Chain
    KMC e9 Sport, ebike optimized
  • Crankset
    Forged Alloy minimal Q-factor, 46T
  • Bottom Bracket
    -
  • Rims
    Alloy, 35mm inner width, e-bike optimized
  • Hubs
    Thru-axle seal bearing Disc 15x110[F] 135[R]
  • Spokes
    Stainless steel, 13G [F] 13G [R]
  • Tyres
    Maxxis [F]24x2.5 [R] 24x2.2 SINGLE COMPOUND 60TPI WIRE Tube Type
  • Extras
    Range Extender Box
  • Lighting
    Supernova E2 Mini Pro Axa BlueLine Steady E6 rear
  • Lock
    -
  • Carrier
    Alloy Front/ Rear Carrier
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
